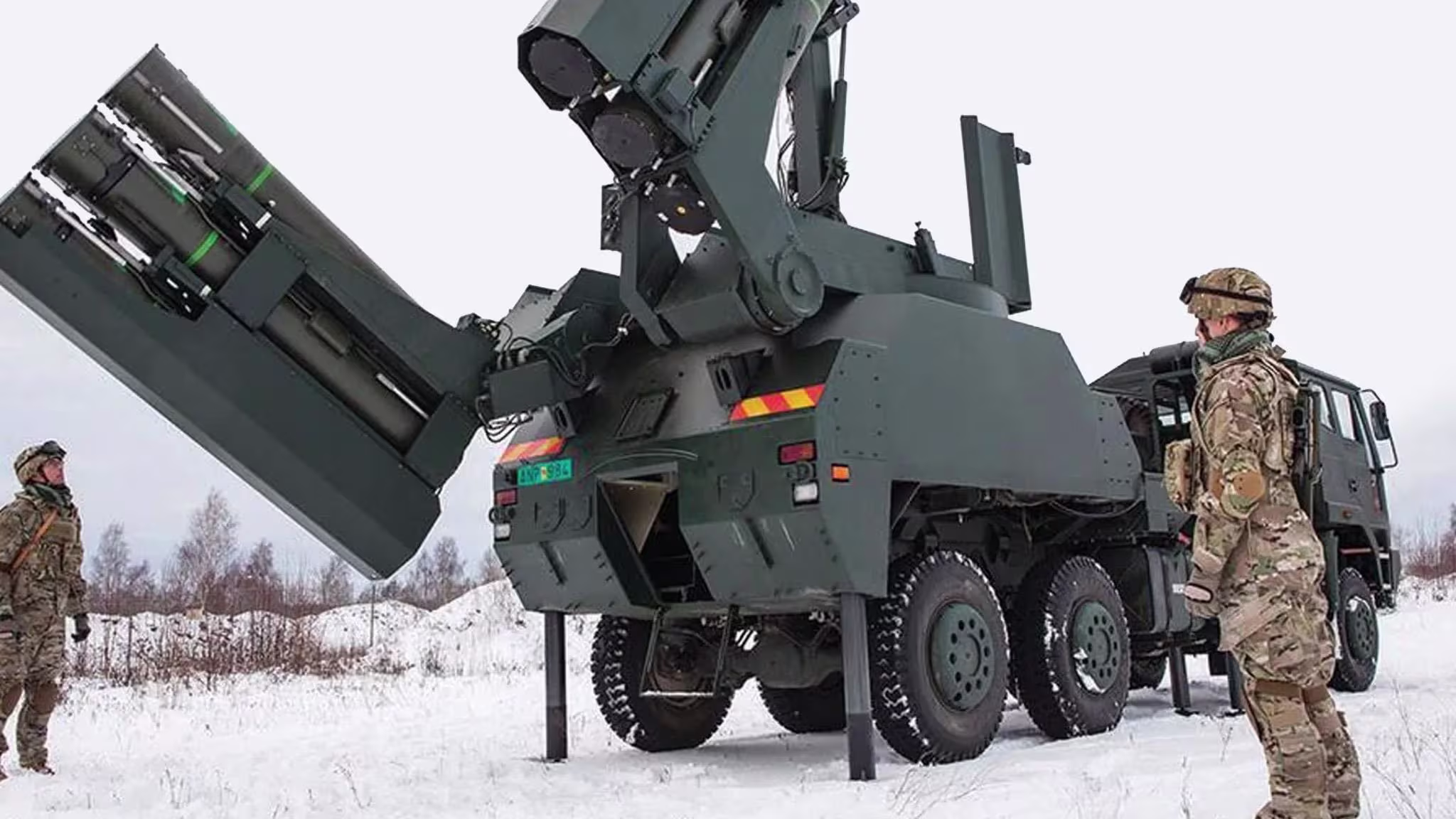

The BAMSE SRSAM system is one of few systems in the world today that is developed and optimised as a de­dicated Ground-Based Air Defence (GBAD) missile system. The RBS 23, designated BAMSE, is a Swedish medium range, all-weather capable air defense system developed by Bofors and Ericsson Microwave Systems (now both in the Saab group). BAMSE SRSAM is designed for flexible usage both for stand-alone operation as well as in networks with other sensors and weapon systems. The philosophy is to optimise system effect by having a number of fully co-ordinated firing units that together create a ground coverage for the system of more than 2,100 km2 and an effective altitude coverage of 15,000 m. The BAMSE SRSAM system has excellent built-in ECCM capabilities both in the GIRAFFE AMB surveillance radar and the unique monopulse Fire Control Radar (FCR) Automatic Command to Line Of Sight (ACLOS) missile guidance function.

BAMSE SRSAM Ground Based Missile System

BAMSE SRSAM Ground Based Missile System


The BAMSE system is a state of the art system with several unique capabilities. The system has been developed for a conscript Army with the strong requirement for easy operation and maintenance. The BAMSE system has extensive Built in Test Equipment (BITE), which minimises the need for special test equipment. The BAMSE system is also developed to have high redundancy where every single missile launcher has the capability to combat targets without any connection to an external information source or higher command.The BAMSE system has unique high altitude coverage and is effective with maintained high missile manoeuvrability at 15,000 m altitude. Every single missile launcher has C2 capabilities. BAMSE has high survivability with ballistic protection on every missile launcher and outstanding ECCM capabilities. The BAMSE system has the possibility to have integrated IFF on every missile launcher in order to further strengthen the possibility to act as autonomous units, if necessary. The system has been specially developed to combat small and fast targets as well as low flying cruise missiles and UAVs.
BAMSE SRSAM Ground Based Missile System

BAMSE SRSAM Ground Based Missile System


The system consists of a Surveillance and Control Centre (SCC) and two to four Missile Control Centers (MCC). The missile control center trailers are located up to 20 km away from the SCC and interconnected via a cable or radio communications (up to 15 km). The SCC is operated by a crew of one or two. It comprises an Ericsson GIRAFFE Radar 3D surveillance radar with an antenna mast of 8 to 13 meters. It is used for threat evaluation, combat coordination, with target acquisition, identification, tracking and prioritisation. The SCC can coordinate up to four missile control centres. The system has a built-in simulation capability to carry out training. The missile control center trailer depends on transportation vehicles which also carry additional missiles for reloading operations. The center is protected against fragments and nuclear, biological and chemical threats. It has two computer stations and is operated by one or two persons. It comprises a Ka-band fire control radar with an 8 meters mast, IRST (infrared sensor for surveillance and tracking), IFF system, six ready-to-fire BAMSE missiles, and weather sensors. The MCC can be deployed in 10 minutes and complete reload of a MCC takes less than 4 minutes. The missile used by the RBS 23 system is based on the RBS 70, but unlike its predecessor (which is laser beam rider) it is a radar command control ACLOS missile, which means that the missile itself and the target have to be tracked by the fire control radar until impact. A booster has been added also. The missile is claimed to have high acceleration and high manoeuvrability. It is equipped with a fragmentation and shaped charge warhead and with both a proximity fuse and an impact fuse. Range is 20 km.
BAMSE SRSAM Ground Based Missile System

BAMSE SRSAM Ground Based Missile System


To successfully meet threat scenarios, the BAMSE system has been provided with all vital capabilities for defeating the present threat and that of the foreseeable future with the following unique capabilities:

  • Optimised situational awarenes
  • A large number of SHORADS can be connected
  • Freedom of deployment due to elevated platforms
    Short deployment time; a complete battery is combat- ready in less than lOmin
  • Short reloading time; all six missiles in less than 5 min
    Flexible system, several MCCs controlled by one GIRAFFE AMB
  • Embedded simulator in every unit
  • Maintenance-free missiles
  • Extensive BITE for every unit and a simplified maintenance concept
  • Long servicable life and Low Life Cycle Cost (LCC)
  • Optional C-RAM warning capability
